FlashServer 2Ux4

Four Independent Intel Servers in 2U Enclosure – Saves $$$, Space & Power.

Models

Up to 128 Cores and 24 HDDs/SSDs Total.  Need Pricing? Click here . . .

FlashServer 2Ux4 provides four servers with six dedicated drive bays each in a 2U enclosure.  It replaces four 1U servers in a single box.  Saves $$$, space and power.

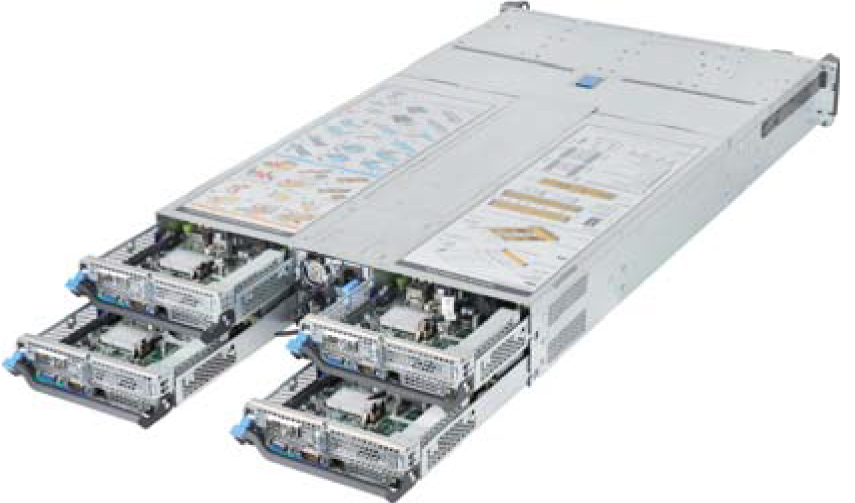

Each of the four servers are field replaceable without interrupting the other three servers running.  The power supplies, fans and 24 disk drives are hot swappable.

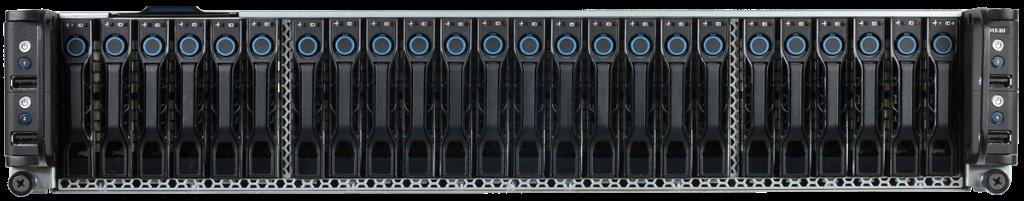

All key components are field replaceable including rear-loading servers and power supplies, front-loading disk drives and top-loading fans.

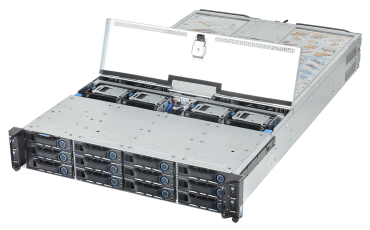

Top-loading fans and “push/pull” fans that maintain airflow even if one of the two fans fail and are easy to access.

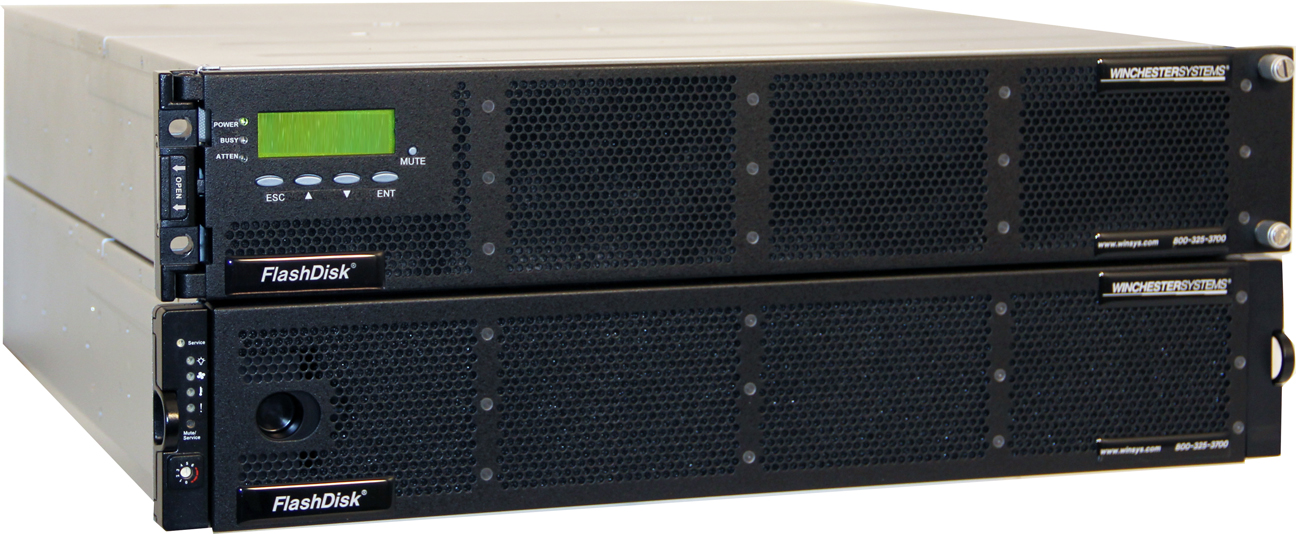

FlashDisk RAID Disk Arrays offer easy SAN expansion and supports HA server clusters.  FlashNAS unified storage supports backup and disaster recovery.

    Features

    Key Benefits

    • Delivers four standard and inde-
      pendent Intel servers in just 2U!
    • Powerful Intel E5-2600 v3 CPUs
    • Saves rack space and power
    • Perfect for virtualized environments

    Cost Savings

    • Cuts purchase costs
    • Cuts power and cooling costs
    • Cuts installation effort
    • Cuts management time
    • Cuts support costs

    High Density Servers and Storage

    FlashServer 2Ux4 provides a simple way to provide multiple servers and local storage in a single enclosure.  The benefits are obvious:  One highly engineered, high quality, built-to-last server replaces four separate 1U or 2U servers – at lower cost.

    This FlashServer high density solution cuts rack space and power by 50% to 75%.  Power savings are equally impressive with up to 75% savings – or more using power profiles.  These powerful Intel servers work just like any other Intel server in your Windows, Linux and VMware environments.

    FlashServer 2Ux4 supports 8 & 16 Gb Fibre Channel, 6 & 12 Gb SAS, 1 GbE, 10 GbE, 40 GbE and 56 Gb Infiniband connectivity.  A single unit provides four separate Intel servers each managed by GUIs that are IPMI v2.0 compliant.

    Each of the four servers provides two Intel Xeon E5-2600 v3 family processors per server node.  Each node supports six 2.5” disks to 2 TB each. Thus each node supports 12 TB and a total of 48 TB of internal storage in a single 2U enclosure.  Three PCIe 3.0 slots per node enable storage and networking expansion.    Optional FlashDisk® and FlashNAS™ storage support hundreds of terabytes.

    It is easy to see the immediate benefits of installing one unit rather than four with lower upfront costs plus cutting power and cooling immediately.

    Questions?
    Click here . . .

    Specs

    FlashServer FS-2600 Specifications
     Removable Server Nodes 2 or 4 server nodes each with 2 processors x 4 to 16 cores;  Up to 128 cores and 256 threads combined
     Intel Processors Per Node 2 Intel E5-2600 v3;  Intel C610 Chipset;  Up to 3.5 GHz Base Rate and 3.7 GHz with Turbo Boost
     Memory (DDR4) Per Node Up to 512 GB (16 x 32 GB RDIMM / LRDIMM) @ 2133 MHz per node;  Up to 2 TB total
     PCIe Expansion Slots Per Node (1) PCIe x16 G3 low profile; (2) PCIe x8 mezzanine card; 12 PCIe slots total
     Management Port Per Node Dedicated 10/100 BASE-T RJ45 Management Port, IPMI v2.0 with KVM over IP support
     I/O Ports Per Node (1) USB 2.0;  (2) USB 3.0;  (1) VGA;  (1) RS-232 Serial Port;  (1) 10/100 BASE-T RJ45
     LAN & Storage Mezzanine Cards 8 Gb & 16 Gb F/C;  6 Gb & 12 Gb SAS 3.0;  1 GbE, 10 GbE & 40 GbE QSFP+;  56 Gb Infiniband
     Removable 2.5” Disks 6 HDD/SSD Node;  24 Total Per 2U Server
     Windows Support Windows Server 2008 R2 X86_64, Windows Server 2012 & 2012 R2
     Linux Support Red Hat RHEL 6.5 & 7.0 for Intel Servers; Novell SUSE Enterprise Server 10 & 11
     Virtualization Support VMware ESXi 5.5;  Hyper-V for WSS 2012 & 2012 R2;  SUSE Enterprise Linux with Xen
     Power Supply (2) 1200W Platinum PSU, 100-240VAC 50/60 Hz or (2) 1600W Platinum PSU, 200-240 VAC 50/60 Hz
     Dimensions 17.48” (444 mm) Wide x 3.44” (87.5 mm) High x 31.1” (790 mm) Deep
     External Storage FlashDisk® RAID & FlashNAS™ ZFS Storage with Snapshots, Mirroring, Replication, Thin Provisioning & more
     Standard Warranty Three year factory warranty and toll free hotline during business hours
     Additional Service Options On-site install; 24×7 hotline; On-site service, spares; Advance parts replacement; Custom programs for classified sites.
