RR1P™ Rugged Removable Canister RAID Series enables rapid removal of large data stores from reconnaissance and surveillance missions and other data acquisition applications.
-
For rapid field re-deployment of critical surveillance vehicles including planes, ships and Humvees, the RR1P removable canister system enables recorded data to be removed and replaced immediately with a fresh canister in under two minutes.
-
Sturdy, lightweight aluminum canister records up to 19.2 TB using 24 SSDs and is designed for quick data transfer to ground stations from mobile vehicles. The canister connects to the chassis with a military grade connector designed for 10,000 insertion cycles.
-

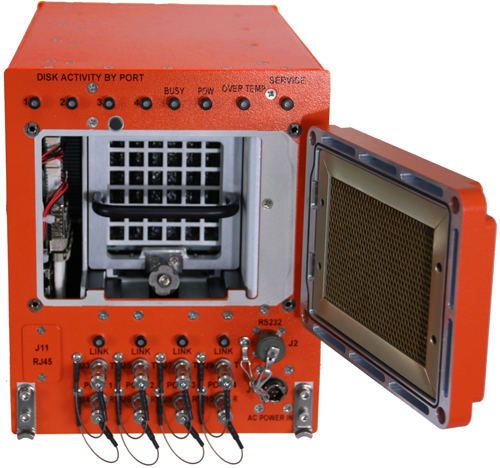

- RR1P shown with door open and canister installed.
- Door sensor automatically powers down RR1P when opened.
- “J-hook” thumbscrew secures canister to withstand vibration.
- RR1P mounts to standard ATR mounting trays.
-

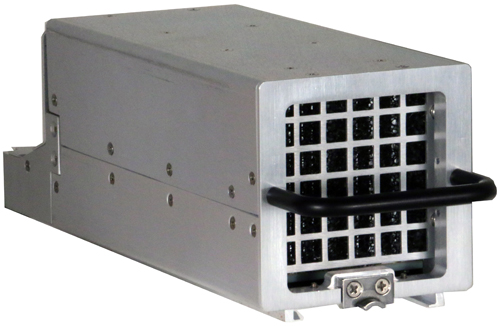

- RR1P Removable Drive Canister holds twenty-four 1.8” SSDs.

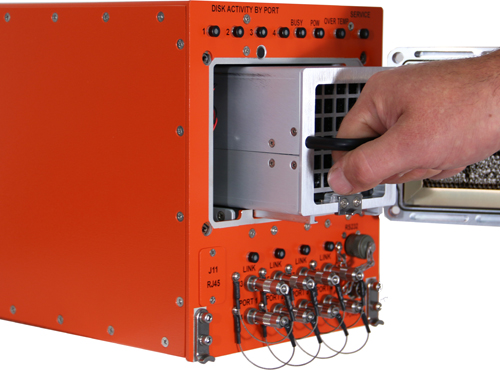

- Front mounted handle makes insertion, removal and carrying the canister easy.
- Milled aluminum canister alignment rails slide easily on Delrin base into the rear-mounted guide pins for a secure fit.
Features
Pluggable Canister RAID
- Removable canister in 3/4 ATR enclosure
- Canister stores up to 19.2 TB in 24 SSDs
- Quick insertion/removal
- Positive canister locking mechanism
- Canister restraints for crash protection
- Four 2/4/8 Gb Fibre Channel ports
- 0° to 40° C operating temperature
- 2,600 MB read/2,200 MB write throughput
Connectivity, Capacity & Scalability
- Supports 24 SSD 1.8” low-profile disks
- 3/4 ATR form factor
- Rackmount rail kits available
- Up to 4096 logical volumes
Reliability & Serviceability
- RAID 0, 1, 5, 6, 10, 30, 50, 60 protection
Centralized & Remote Management
- Manage via IP, SMTP, SNMP, RS-232, CLI
Tested to Meet Military Standards
- MIL-STD-810G Environmental
- MIL-STD-901D Shock and Vibration
- MIL-STD-461F EMI/RFI
- MIL-STD-704E Aircraft Power
- RTCA-DO-160 Humidity
The RR1P is a 3/4 ATR form-factor, true military rugged unit with COTS controller, transportable RAID data storage system for mobile field use aboard planes, ships and ground transport. The enclosure is 100% aircraft-grade aluminum for strength and light weight and is ARINC tray mountable. Weighing only 25 pounds, the RR1P features an easily removable disk canister that’s lightweight, durable, and sustains 10,000 insertion cycles – enough for 5 years of daily use. Each canister holds up to 24 low-profile 1.8” Solid-State Disk (SSD) disk drives with capacity up to 800 GB each and total raw capacity up to 19.2 TB. The system delivers up to 2,200 MB per second write throughput for rapid data recording and up to 2,600 MB per second for data reading and transfer.
After a typical surveillance deployment, the canister with critical images is easily removed and plugged into a ground station. A fresh canister is immediately loaded into the mobile unit for rapid redeployment. All 24 SSDs in a canister are carried as a single unit by a handle for safe transport.

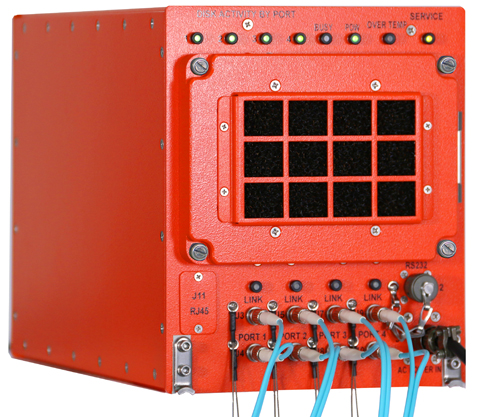

All RR1P data and power connectors, including four optical 8 Gb Fibre Channel ports are located on the front panel. The RR1P is forced air cooled and the front panel provides all intake air to the enclosure through an EMI honeycomb filter and removable dust filter. Captive military grade fasteners secure the front door.
Designed for the most demanding environments, the RR1P tolerates vibration through maximizing rigidity and damping characteristics of components and supporting structures, and the use of SSDs. RR1P operates from 0°C to 40°C from sea level to 10,000 feet.
Specs
| ATR RAID Disk Array | |
|---|---|
| RAID controller | Single RAID controller |
| Canisters | 1, holding up to twenty four 1.8” SSDs |
| RAID levels supported | 0, 1, 5, 6, 10, 30, 50, 60 |
| Host ports and interface | Four ports; 2/4/8 Gb Fibre Channel |
| Drive interface | SAS/SATA |
| Number of drives/Total capacity | 24 drives/19.2 TB maximum raw capacity |
| Cache memory capacity | 8 GB |
| Maximum LUNs | 4096 LUNs |
| LUN masking | Configurable for each host LUN on FC SAN |
| Port mapping | Map ports to servers for direct attach environments |
| Multipathing (MPIO) | MPIO supported for Windows and Linux |
| Color | FED-STD-595 color 12197 |
| Canisters | |
|---|---|
| Capacity | 24 SSD disks |
| Weight | 5 lbs. |
| Connectors | Military grade for high field reliability |
| Insertion Cycles | 10,000 |
| Restraints | Crash resistant canister restraints for personnel safety |
| Disk Drives | |
|---|---|
| 1.8” SSD disk drives | SAS or SATA 400 GB MLC, 800 GB MLC |
| Controls and Indicators | |
|---|---|
| Firmware embedded web browser | Use standard web browser on 10/100 Gb LAN port |
| Firmware embedded CLI | Command Line Interface for text management |
| Firmware embedded SMTP | Monitor system events via email |
| Firmware embedded SNMP | Monitor system events via SNMP without agent |
| Indicators | Front panel power, status, activity and service indicators |
| Compatibility | |
|---|---|
| Operating systems | Supports industry standard operating systems |
| Platforms supported | Supports Fibre Channel and embedded FPGA hosts |
| Protocols supported | SCSI-2 and SCSI-3 over Fibre Channel |
| Remote monitoring ports | 10/100 Ethernet |
| Storage Management | |
|---|---|
| Event notification | Service light, SNMP trap, SMTP notification, event log |
| Manage out of band | 10/100 Ethernet |
| General | |
|---|---|
| AC power | Single 100-240 VAC Inlet, 40-400 Hz standard |
| AC connector | Military circular connector |
| DC Power | 26-32 VDC option |
| Power consumption | 250W rated, 185W typical |
| RAID unit dimensions | 3/4 ATR (9.0” h x 7.5” w x 12.5” d) |
| RAID unit weight | 25 lbs. (fully loaded) |
| Temperature | 0° to 40° C operating; -40° to 65° C non-operating |
| Humidity | 5% to 95% non-condensing, operating & non-operating |
| Cooling system | 1 rear mounted, high volume cooling fan; 9,550 rpm, 91.8 CFM, 59 dBA |
| Compliance | UL approval pending; FCC & CE pending |
| Warranty & Service | |
|---|---|
| Standard Warranty | One year warranty and toll-free hotline |
| Service Contracts | Extend standard warranty for subsequent years, Upgrade to on-site service in continental US |
