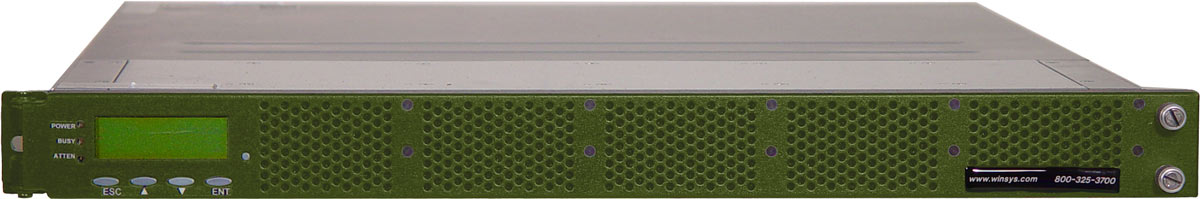

RV-1300 (1U, 2.5” drives)

Rugged RAID at COTS Prices with 2.5″ Disks for Field Deployment.


FlashDisk RV-1300 Series. Compact, rugged disk arrays with SAS or SSD disks are ideal for mobile applications – providing field reliability and data protection.


FlashDisk RV-1300 disk arrays feature 2.5” SAS or SSD disks and are ideal for mobile applications – providing field reliability and data protection at COTS prices.

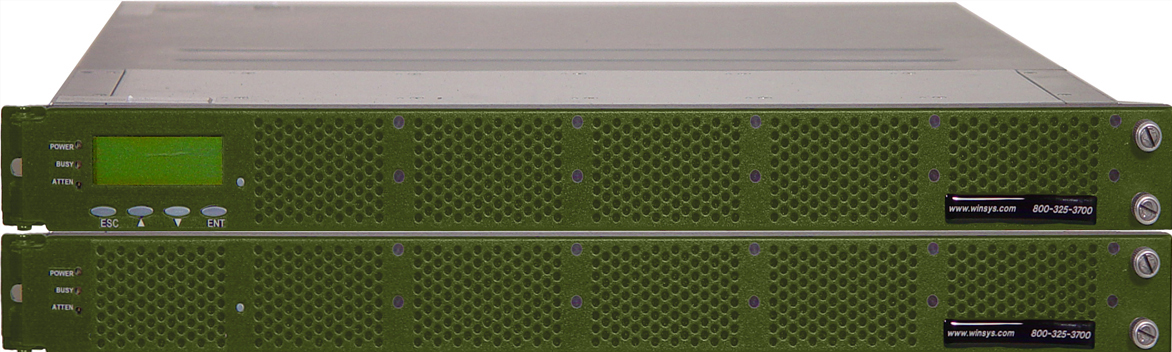

RV-1300 Base Unit with 1U Expansion Shelf

Virtual Servers and key applications need the speed and RAID 6 data protection that FlashDisk delivers. The RV-1300 Series supports up to 108 disk drives with six 1U/2U/3U expansion shelves and expands to 600 TB with 6 TB disk drives.

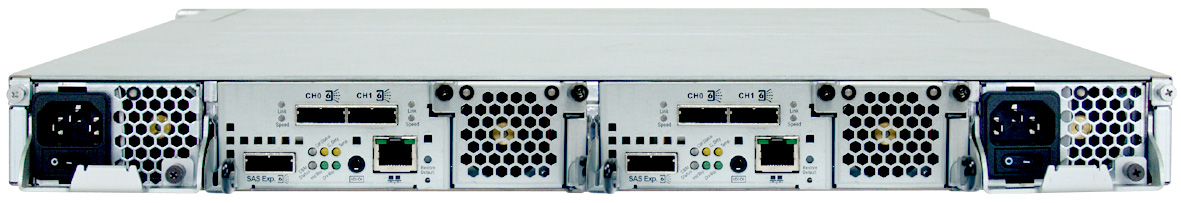

RV-1334R with 4 SAS 6 Gb ports.

Rear view of Fibre Channel, SAS and iSCSI Base Systems and common SAS Expansion Units.

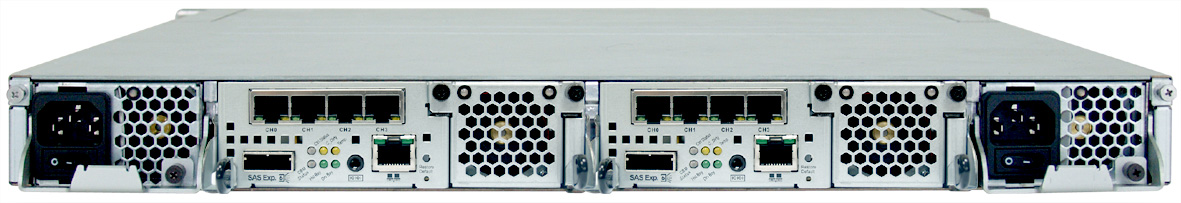

RV-1358R with 8 iSCSI GbE ports.

Rear view of Fibre Channel, SAS and iSCSI Base Systems and common SAS Expansion Units.

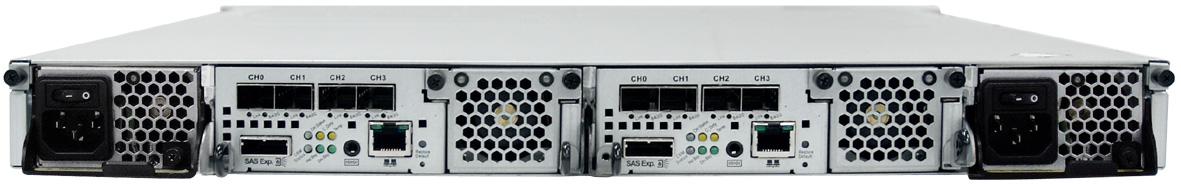

RV-1328R with 8 Fibre Channel 8 Gb ports.

Rear view of Fibre Channel, SAS and iSCSI Base Systems and common SAS Expansion Units.

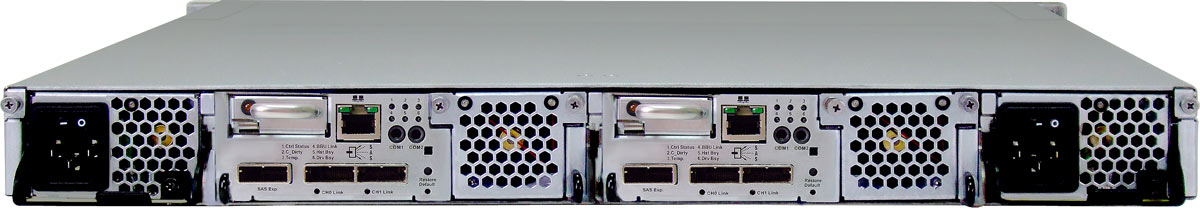

RV-1310R 2.5” 12-drive 1U expansion shelf.

Rear view of Fibre Channel, SAS and iSCSI Base Systems and common SAS Expansion Units.

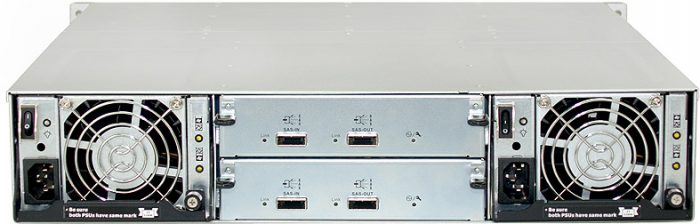

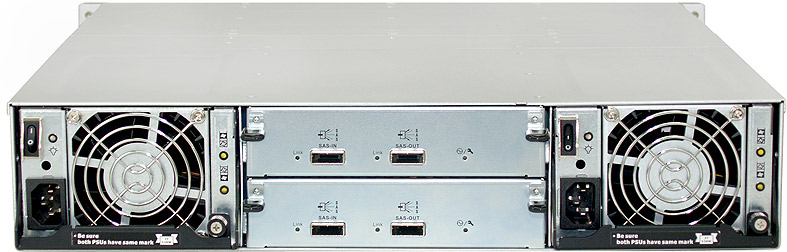

RV-2310R 3.5” 12-drive 2U expansion shelf.

Rear view of Fibre Channel, SAS and iSCSI Base Systems and common SAS Expansion Units.

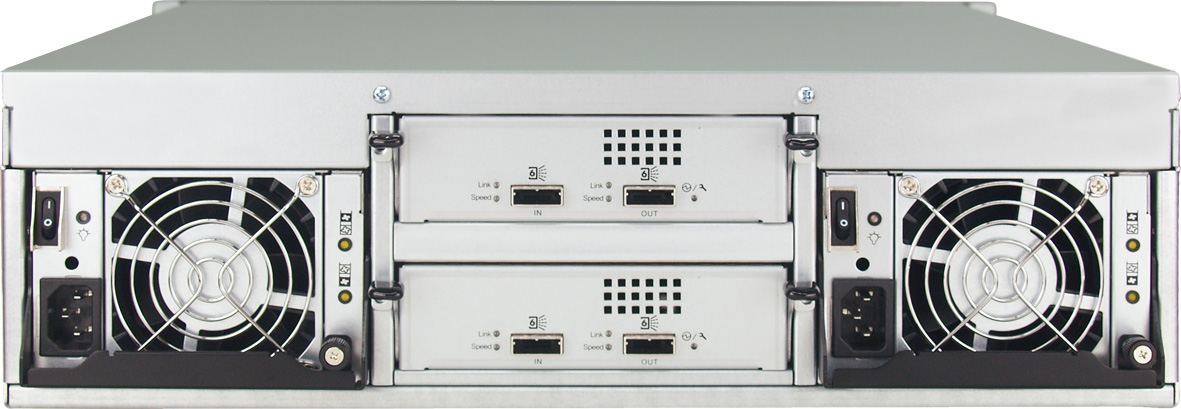

RV-3410R 3.5” 16-drive 3U expansion shelf.

Rear view of Fibre Channel, SAS and iSCSI Base Systems and common SAS Expansion Units.


    Redundant Controller Systems

    Host Interface SAS 6 Gb iSCSI 1 Gb 8 Gb Fibre Channel
    Models RV-1334R RV-1358R RV-1328R
    Number of Host Ports 4 8 8
    RAID 5/6: IOPS (R/W) 129K / 56K 87K / 33K 148K / 72K
    RAID 5/6: Throughput MB/s. (R/W) 2,138 / 1,034 701 / 556 2,203 / 1,147

    Single Controller Systems

    Host Interface SAS 6 Gb iSCSI 1 Gb 8 Gb Fibre Channel
    Models RV-1332S RV-1354S RV-1324S
    Number of Host Ports 2 4 4
    RAID 5/6: IOPS (R/W) 67K / 45K 48K / 30K 77K / 58K
    RAID 5/6: Throughput MB/s. (R/W) 1,348 / 854 338 / 328 1,389 / 891

    Number of Total SAS/SSD Disks 112
    3.5” SAS Disks 15K rpm: 600 GB  –  7.2K rpm: 2, 4, 6 TB
    2.5” SAS Disks 15K rpm:  300 GB; 10K rpm: 600, 900 GB, 1.2 TB; 7.2K rpm: 1 TB
    2.5” SSD Disks MLC SAS/SATA: 200, 400, 800 GB; MLC SAS 2.0 TB
    Compatibility Supports any open O/S; Supports VMware, Citrix, Hyper-V
    Reliability RAID 0, 1, 3, 5, 6, 10, 15, 16, 30, 50, 60; Hot swap components; Hot spare drive; Automatic rebuild; Path failover
    Manageability FlashDisk Global Manager manages multiple FlashDisk units over network; Automated alerts
    Warranty and Service Three year factory warranty; 24×7 automated “call home” to US call center;  Phone support during business hours


    Rugged Features

    • Sturdy milled aluminum door with hinges
    • Easy to operate thumbscrew door locks
    • Dust/moisture seals – door top and bottom
    • Heavy-duty dust filters – easy to replace
    • Chassis lock-down mounts to 1U tray
    • Rugged strain reliefs for host cables

    Reliability & Serviceability

    • RAID 6 dual parity data protection
    • Hot-swappable drives, power supplies, fans, BBUs, AC inlets, optional controllers
    • Hot spares with automatic drive rebuilds
    • Supports drive path failover & load balancing
    • No single point of failure configurations

    Compatibility, Connectivity, Capacity

    • Supports all virtual platforms and open O/S
    • Supports up to (108) 3.5″ or 2.5″ disks
    • Up to 8 F/C 8 Gb, 4 SAS 6 Gb, 8 GbE ports
    • 2 GB of cache per controller, 4 GB optional
    • Scales to 600 TB with 6 expansion shelves
    • Managed out-of-band via Ethernet, Telnet
    • Throughput MB/s: 2,203 read; 1,147 write
    • IOPS: 148K read, 72K write

    FlashDisk COTS Rugged disk arrays are designed to protect data from certain environmental perils – at COTS prices.  Far less expensive than fully rugged systems, the FlashDisk RV-1300 Series supports SAS, Fibre Channel or iSCSI hosts. It supports (12) 2.5” SAS or SSD disks and provides up to 12 TB in the base unit.  Compact 1U shelves are perfect for vehicles with space and weight limits.  The RV-1300 expands to 600 TB with up to six 1U, 2U or 3U expansion shelves.

    As COTS rugged, it is protected against dust, moisture, shock and ­­­vibration not offered on standard commercial units.  Military commanders have approved these units for field use and have deployed them worldwide in harsh environments. The front door is crafted of sturdy welded cold rolled steel that provides rigidity and structural integrity.  The rugged door is further secured with two Huck fasteners that prevent drives from ejection in the event of a crash.  It also houses a dust filter to constrict particle flow and provide a moisture shield to protect internal components.  The LCD front panel is easily viewed by field personnel and offers pushbutton controls to operate the unit from the front panel.  Optionally, the US Army, Navy and Air Force can mount this unit using nine bolts to an optional 1U mounting tray for mobile operations.

    FlashDisk Global Manager™ provides all storage services and a centralized management pane for multiple systems.  FlashDisk RV-1300 supports a base unit with single or dual redundant controllers with mirrored cache and up to 6 expansion shelves.  RAID 6 provides dual parity for large arrays to protect against two drive failures and to ensure successful disk rebuilds.


    Storage Services
    Virtual Storage Pools Create, expand, and delete storage volumes as requirements change to maximize storage utilization.
    Snapshots Up to 256 snapshots per volume with 4,096 total snapshots and 256 volume copies. Mount and read snapshots, restore files and databases. Rollback to selected time. Server flush agent supports Windows and Linux applications.
    Thin Provisioning Option Provides dynamic storage allocation and maximizes storage utilization.
    Remote Replication Option Storage based replication for business continuity and disaster recovery.
    Mirroring Create mirror volumes, split mirrors, fast resync for data redundancy, backup, data mining and analysis.
    Volume Copy Reconstitute full volumes from snapshots, create multiple full versions to avoid overloading production.
    FlashD2D Backup Scheduled zero-downtime tiered primary to secondary disk-to-disk backup. Enables off-line copy to tape.
    Global Management Manage multiple FlashDisk VX Series systems from a single, easy to use GUI from any browser on the web.
    Storage Wizard Wizard simplifies initial setup and enables advanced settings.
    Visual Calendar Scheduler Schedules all storage services including snapshots, volume copies, split mirrors, fast resync and replication easily and intuitively.


    System Options
    Thin Provisioning Enables high storage utilization with virtual storage on demand.
    Remote Replication Available on “multi-protocol” models with added iSCSI replication ports.
    Advanced Storage Services Increases snapshots from 64 to 256 per volume; from 1,024 to 4,096 total and increases volume copies from 64 to 256 total.
    LUN Masking Enables volume protection needed in SAN environment.
    Cache upgrade Expands 2 GB controller cache memory to 4 GB cache.
    1U RAID Base Unit
    RAID controller Single/Dual redundant 64-bit, 11th generation controller
    RAID levels supported 0, 1, 3, 5, 6, 1+0, 15, 16, 30, 50, 60
    Host interfaces 6 Gb SAS, 8 Gb F/C, GbE, 10 GbE
    Expansion shelf interface 6 Gb SAS, 4 lanes – 24 Gb per port – up to 72 Gb per array
    Number of drives – Total capacity (12) 2.5” disks per base unit – 600 TB maximum
    On-line capacity expansion Automatically adds new drives to existing array – “on-the-fly”
    Cache memory capacity 2 GB, expandable to 4 GB per controller
    Non-volatile cache Li-ION battery powered backup to flash memory
    Maximum LUNs 1024 total, 64 per host ID
    Maximum number of hosts 4 SAS, 64 iSCSI or 64 Fibre Channel
    LUN mapping/filtering Configurable per logical partition
    Host adapters available for PCI-X, PCI Express
    Power supplies and AC inlets Dual hot-swap redundant 380 W each; dual AC inlets
    1U, 2U or 3U Expansion Shelves
    Expansion architecture Single/Dual SAS (Serial Attach SCSI) bus
    Expansion shelf architecture Multiplexed access to each drive within the shelf
    Maximum drives/capacity (12) or (16) disks per expansion shelf – 72 TB per shelf maximum
    Removable drive trays Hot swappable; individual drive locks
    Power supplies Dual hot-swappable; 380/460/530 Watts each
    Cooling system Dual hot-swappable fan modules
    Active components No active data path components on the midplane
    S.E.S. monitoring controllers Dual, hot-swappable SCSI Enclosure Services modules
    Controls and Indicators
    LCD front operation panel 2 x 16 character display, push button controls.
    LED indicators LED power, battery, controller, and system status
    Alerting Audible and visual alerts
    Component failure Failure indication through LCD and GUI
    LCD front operating console View/edit logical RAID/physical drives, setup hot-spare drives, map hosts, check parity, enable write-back cache, rebuild failed drive, view logs…
    Operating systems Supports 14 Operating Systems including Windows, Linux, and UNIX
    Platforms supported Intel, SUN, HP, IBM RS-6000, Apple, SGI
    Cluster support Supports 9 industry-standards including Windows, Linux, and Veritas
    Remote monitoring ports RJ45 10/100 Ethernet
    Communication protocols TCP/IP, SNMP, SSH
    Storage Management
    Event notification Automatic event and problem alert notification
    FlashAlert call home service 24-hour call center available for immediate action
    Manage out of band Ethernet
    FlashDisk Global Manager GUI Manage storage services of multiple FlashDisks from any web browser
    Uninterruptible power supply Required when using write-back cache
    Redundant AC power Dual 90-260 VAC Inlet, 47-63 Hz
    Power consumption 100 VAC @ 8/10A; 240 VAC @ 4/5 A; 380/460/530 W with PFC
    RAID unit dimensions 1.7″/3.4”/5.1”h x 17.5″w x 19.6″d
    RAID unit weight Approximately 39/63/77 lbs. fully loaded with drives
    Operating temperature 0° to 40° C
    Cooling system Two dual hot-swap, ball bearing blowers; <51 dB-A
    Compliance FCC, UL, CE, CSA
    Warranty & Service
    Standard warranty One year factory warranty and toll free hotline during business hours
    Service contracts Optional on-site service, spare parts and advance parts replacement
    Service contracts Customizable service programs for classified sites
    Installation and service On-site installation; 24×7 service available
